Foundation wall repair
Foundation Walls Repairs in Philadelphia
Safe, engineered fixes for cracked, leaning, or water-damaged foundation walls
Your home's foundation supports everything above it. When a foundation wall cracks, bows, leaks, or settles, it can threaten safety and value. At NK Construction & Design, we diagnose the root cause and deliver engineered, code-compliant repairs - including permits with Philadelphia L&I - so you can feel confident your home is secure.
Structural focus
Signs your foundation wall needs repair
Horizontal, vertical, or stair-step cracks in block/brick/concrete; bulging or leaning walls; water intrusion; uneven or sagging floors; and deteriorated masonry are signs to assess.
- 01
Cracks in block, brick, or concrete
Horizontal, vertical, or stair-step cracks in block/brick/concrete.
- 02
Bulging or leaning walls
Bulging or leaning walls; gaps at base or top (shear).
- 03
Water intrusion
Water intrusion, efflorescence, or damp spots after rain.
- 04
Uneven or sagging floors
Uneven or sagging floors; doors/windows sticking above the basement.
- 05
Deteriorated masonry
Crumbling mortar, spalling concrete, or rusted rebar "bleeds".
Why foundation walls fail
Why foundation walls fail
Lateral earth & hydrostatic pressure
Poor drainage and heavy clay soils can put pressure on foundation walls.
Settlement
Weak or eroded soils and undersized footings can cause settlement.
Freeze-thaw cycles and age-related deterioration
Age and repeated freeze-thaw cycles can deteriorate foundation-wall materials.
Surcharge loads
Driveways, patios, and retaining walls near the foundation can add surcharge loads.
Inadequate original reinforcement or workmanship
Original reinforcement or workmanship may not provide the support the wall needs.
Repair options
Repair options we provide
Selected to fit your home. We always recommend the least-invasive solution that meets engineering standards and local code.

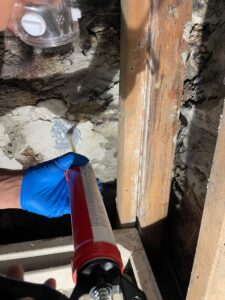

Crack Injection (Epoxy/Urethane)
Structural bonding (epoxy) or flexible water-stopping (urethane) for non-moving cracks.
Structural Tuckpointing & Masonry Stitching
Rebuild mortar joints and stitch cracked sections for brick/stone/block walls.
Carbon-Fiber Straps
Low-profile reinforcement for early-stage bowing and crack control.
Interior Steel Bracing (I-Beams/C-Channels)
Floor-to-framing posts to resist lateral loads where exterior access is limited.
Wall Anchors / Helical Tiebacks
Anchor into stable soil to pull/hold walls with more severe deflection.
Underpinning / Footing Repair
Stabilize settling walls with piers or micropiles when bearing capacity is inadequate.
Shotcrete & Rebar Retrofit / Partial Rebuilds
Restore capacity on heavily deteriorated sections.
Drainage & Waterproofing Upgrades
French drains, sump pumps, downspout extensions, grading to reduce water pressure.
Project evidence
Work related to this structural scope.
Foundation wall repair in Philadelphia
Start with the condition of the wall.
A foundation-wall concern can show up as a crack, inward movement, dampness after rain, or changes in the floors and openings above the basement. Those symptoms can be connected, but they do not all call for the same repair.
The source scope ranges from crack treatment and masonry repair to carbon-fiber reinforcement, interior steel bracing, anchors, footing work, and targeted drainage or waterproofing improvements. The appropriate path depends on the wall material, the amount and type of movement, moisture conditions, and access around the home.
A focused review makes it easier to discuss the condition you are seeing, the repair options that fit that condition, and any related moisture-management work before deciding on the next step.
Our process
Our process
- 01
Assessment & Measurements
Crack mapping, deflection readings, moisture testing, and soil/drainage review.
- 02
Engineering & Permits
Stamped drawings/calcs as required; NK manages L&I submissions and inspections.
- 03
Protection & Prep
Dust barriers, floor protection, selective demo, and temporary shoring if needed.
- 04
Repair & Reinforcement
Execute the specified method (injection, bracing, anchors, underpinning, etc.).
- 05
Finishes & Restoration
Masonry repair/parging, drywall/paint where applicable, cleanup and inspection sign-off.
- 06
Moisture Management
Optional drainage/waterproofing to prevent recurrence.
Get in touch
Discuss a foundation-wall concern
Schedule a call to discuss the condition you have observed.
Foundation wall repair FAQs
Frequently Asked Questions about Foundation Walls Repairs
How is a foundation wall repair scope determined?
The appropriate scope depends on the wall condition, evidence of movement or water, access, the surrounding structure, and the support needed for the specific repair. NK Construction & Design evaluates those conditions before recommending a repair approach rather than treating every crack or wall change the same way.
Can a repair be done from the interior?
Interior steel bracing among the repair options when exterior access is limited.
Will repair also waterproof a basement?
Drainage and waterproofing upgrades as optional moisture-management work; the scope depends on the condition.
